Pan Card Application

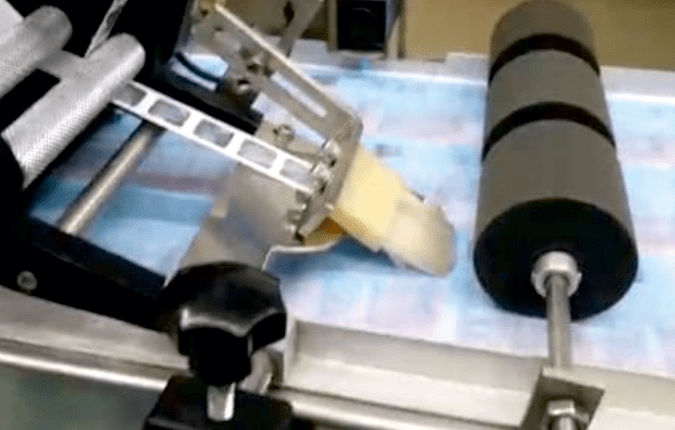

We offer customised labelling solutions for Hologram Application on PAN Cards with great accuracy. The machine can apply holograms on different matrix of PAN cards like 8x3 and 5x5, etc. The machine applies holograms with speeds of 15 to 20 sheets per minute depending on the matrix used. The machine completely eliminates tilted holograms caused due to manual application. Multiple labelling heads can be used depending on the PAN card matrix.

TECHNICAL SPECIFICATIONS

SPEED : 10-15 SHEETS PER MIN
ROLL OD : 280MM
LABEL MATRIAL : PAPER/ FILM/ PE/PP
MOC : SS 304
POWER SUPPLY : 220 V/50 HZ
POWER CONSUMPTION : 3KVA
OPERATING SYSTEM : STEPPER/ SERVO PLC
MACHINE SIZE : 5000MM X 1000MM X 1800MM
WEIGHT : 450KG
PRINTER : TIJ/TTO/CIJ CAN BE INTEGRATED WITH THE MACHINE

Find the labelling system that fits your requirements now:

Pharmaceuticals, food or consumer goods, wrap-around labelling, top/bottom labelling or side labelling - We're offering a broad range of solutions.
